Ekko
SKU EB13ES-145LiEKKO Lithium Straddle Stacker 2640 lb Cap., 145" Height, Side Shift - EB13ES-145Li
★★★★★0 No reviews yet- Regular price
- $8,480.00
$8,480.00
Payment icons

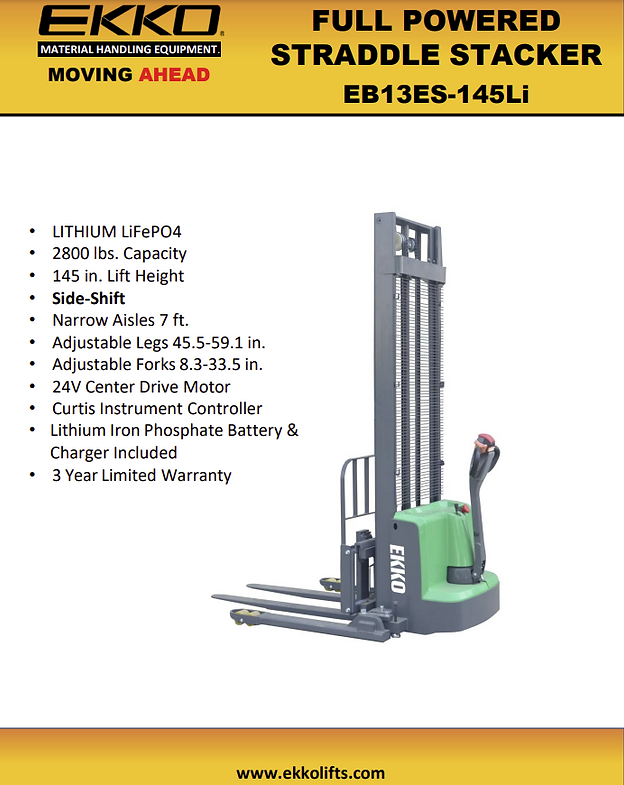

The EKKO EB13ES-145Li Lithium Straddle Stacker includes SIDE-SHIFTING and is designed with the combination of the versatility of a forklift, reach truck and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.

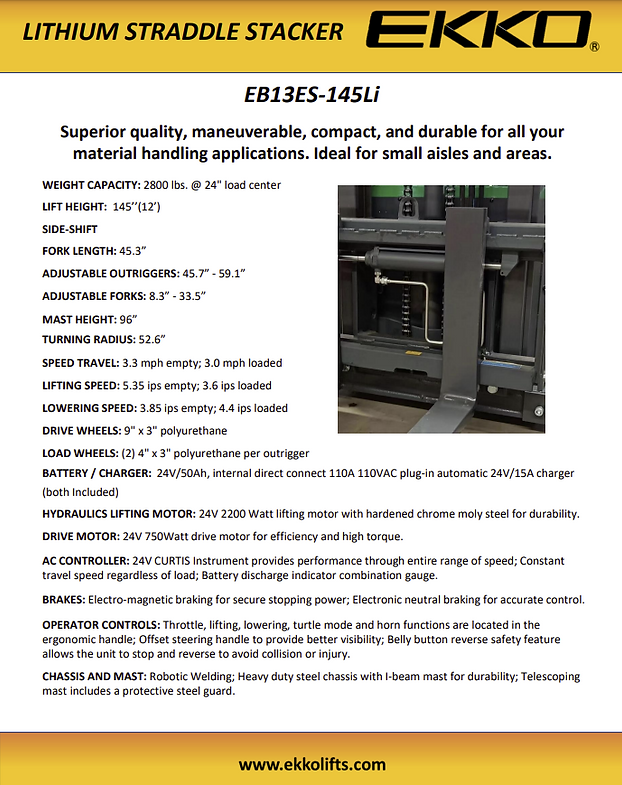

| Model | EB13ES-145Li |
| Load capacity (lbs) | 2640 |
| Max lifting height (in) | 145” |
| Load center distance (in) | 24 |
| Fork length (in) | 45.3 |
| Single fork width (in) | 4 |
| Overall fork width (in) | 8.3–33.5 |
| Lowered fork height (in) | 2.35 |
| Fixed leg length (in) | 36.5 |
| Adjustable legs (in) | 45.7–59.1 |
| Turning radius (in) | 52.6 |
| Overall length (in) | 70 |
| Max overall width (in) | 61 |
| Extended mast height (in) | 167 |
| Lowered mast height (in) | 95.7 |
| Battery voltage (dimensions) | 24V / 50Ah Lithium |
| Internal charger (V/A) | 24V / 15A |
| Lifting motor (V/kW) | 2.2 kW |
| Lift speed (laden/unladen) | 92 / 136 mm/s |
| Lowering speed (laden/unladen) | 112 / 98 mm/s |
| Driving motor | 0.75 kW |
| Driving speed (laden/unladen) | 4.0 / 4.2 km/h |
| Service weight (lbs) | 1495 |
