Sunmax
SKU A-20Sunmax Electric Forklift – 4400 lbs Capacity, 118" Lift for Warehouse Use - A-20
★★★★★0 No reviews yet- Regular price
- $12,999.00
SUNMAX A-20 Electric Forklift is designed for efficient material handling in warehouses, distribution centers, and industrial environments. With a robust lifting capacity of 4,400 lbs and a maximum lift height of 118 inches, it offers exceptional performance, maneuverability, and operator comfort. Powered by an efficient AC motor system and equipped with hydraulic power steering, the A-20 is an ideal solution for mid-sized to heavy-duty indoor applications.
Key Features & Highlights

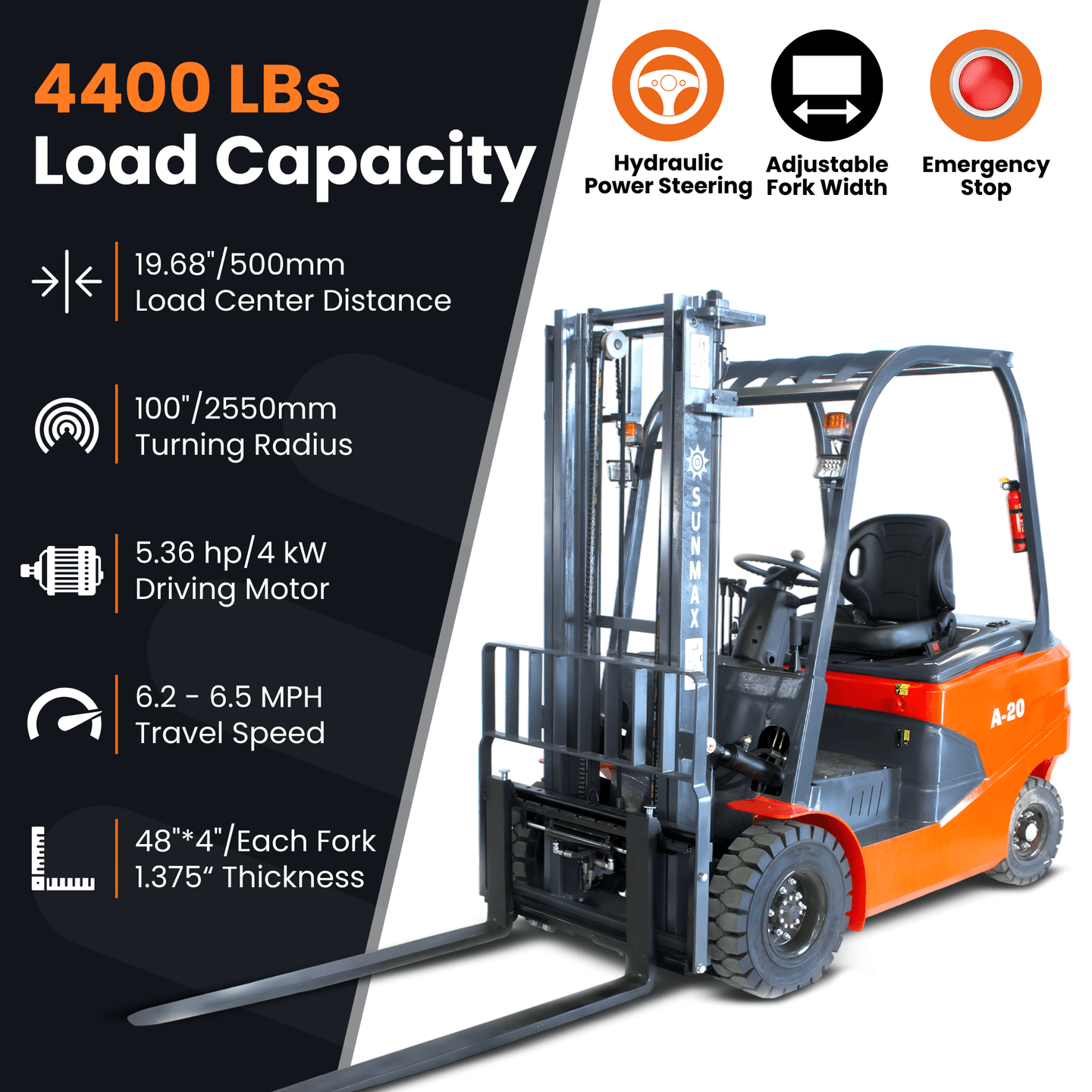

4400 lbs (2-Ton) Load Capacity – Perfect for medium-duty warehouse and industrial applications.

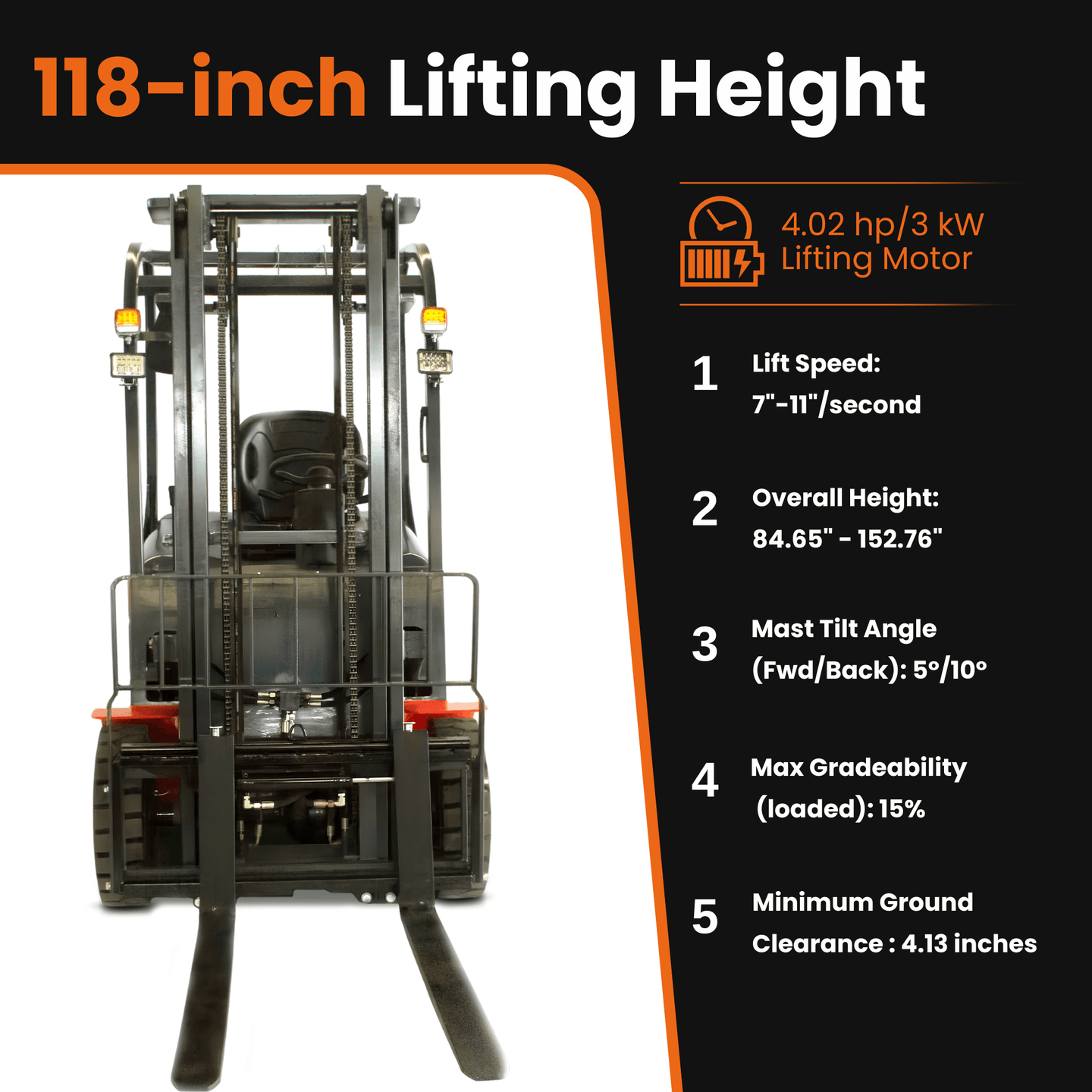

118 inch (9.8 ft, 3m) Max Lifting Height – Ideal for standard racking and storage needs.
Compact and Space-Saving Design - 90.5" chassis length without forks, 47“ width, and 100“ turning radius for easy navigation in tight aisles.
Efficient AC drive and lift motors – 3 kW lifting motor and 4 kW drive motor for efficient, consistent performance.
Hydraulic Power Steering – Ensures smooth, effortless maneuverability.
Long Battery Runtime – 60V/200Ah battery provides up to 4 hours of continuous operation per charge.
Applications
- Warehousing and storage
- Manufacturing and industrial plants
- Logistics and distribution hubs
- Retail stockrooms
| Performance | |
| Rated Load Capacity | 4,400 lbs |
| Max Lift Height | 118 in |
| Load Center Distance | 25.98 in |
| Max Gradability (Laden) | 15% |
| Max Lift Speed: | |
| Unladen | 11 in/s |
| Laden | 7 in/s |
| Max Travel Speed (unladen) | 9.32 mph |
| Mast Tilt Angle (Fwd/Back) | 5° / 10° |
| Steering Type | Hydraulic Power Steering |

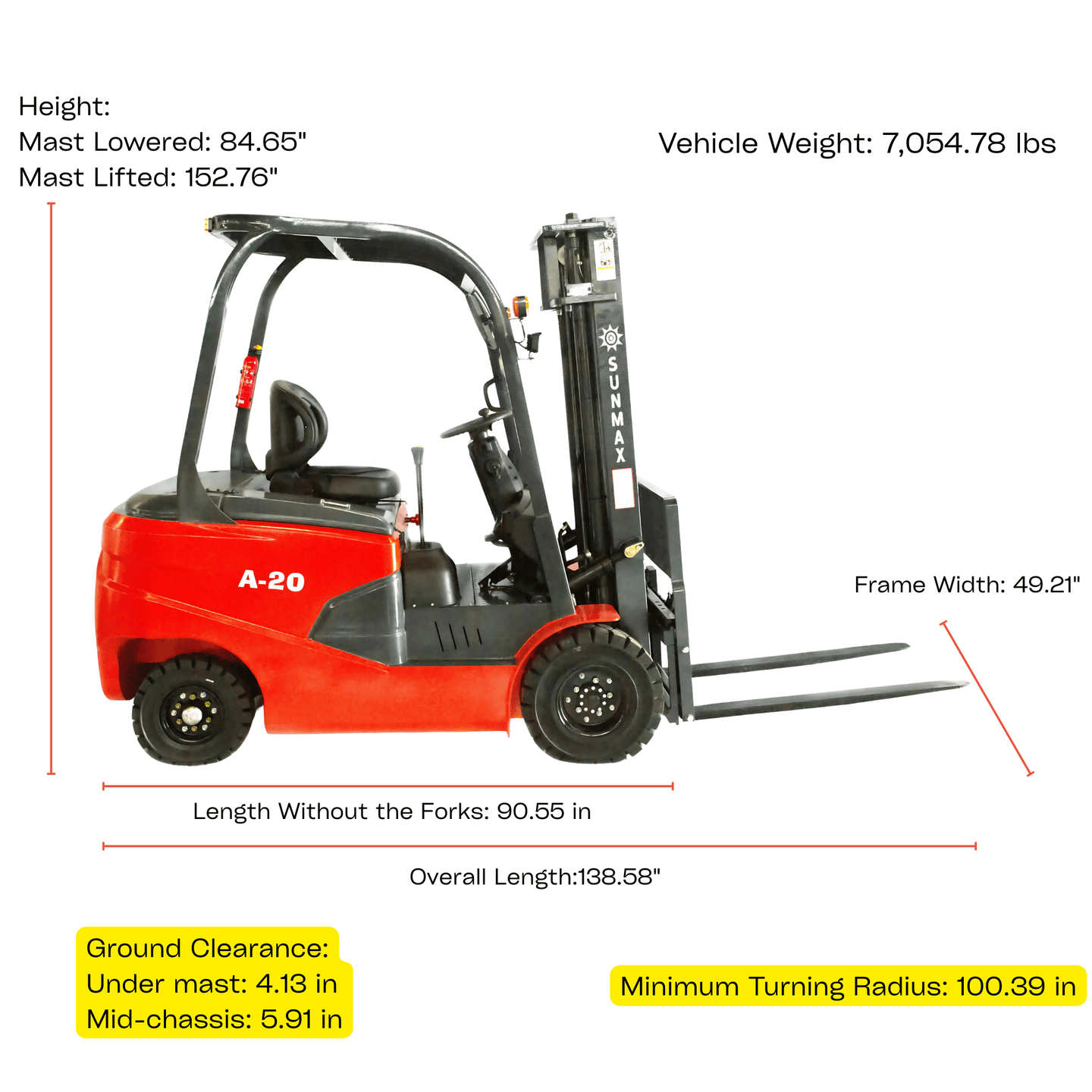

| Dimensions | |
| Overall Length: | |
| Without forks | 90.55 in |
| With forks | 138.58 in |
| Overall Width: | |
| Wheel width | 47.24 in |
| Frame width | 49.21 in |
| Overall Height: | |
| Mast lowered | 84.65 in |
| Overhead guard | 152.76 in |
| Forks Length | 48 in |
| Vehicle Weight | 7,054.78 lbs |
| Ground Clearance | 4.13 in (Under mast)/ 5.91 in ( Mid-chassis) |
| Adjustable Distance between Forks | 0-30.9 in |
| Wheelbase | 67.32 in |
| Front Overhang | 18.9 in |
| Front Tread | 37.8 in |
| Rear Tread | 37.8 in |
| Minimum Turning Radius | 100.39 in |
| Lift Motor Power | 4 HP |
| Drive Motor Power | 5.36 HP |
| Battery Capacity | 60V/200Ah |
| Charger Input Voltage | 110 V |
| Continuous Operating Time per Charge | ~5 h |
Sunmax Electric Forklift Warranty
Warranty: 2 year full / 3 year powertrain / 5 year battery
